TNMG160404-DPMX DH1025 Triangular lathe inserts,negative inserts,CNC cutting tools
TNMG160404-DPMX DH1025 Triangular lathe inserts,negative inserts, turning inserts ,steel maching,carbide inserts, CNC blade,CNC cutting tools,
-
Feature
-
Feature
-
Feature
-
Feature
description

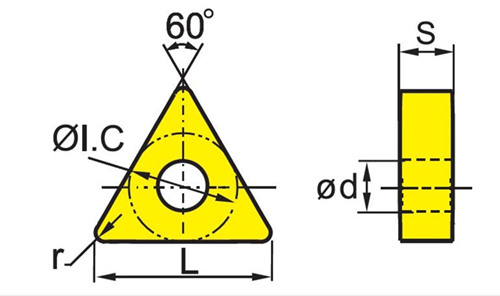

The economical TNMG 160404 is a double sided 60° Triangular insert, with a 16mm cutting edge length and is approximately 4mm in thickness. The corner radius (04) is the most commonly used due to its versatility to provide a balance of both strength and excellent finishes. Our general-purpose grade is designed to cut most materials including, stainless steels, mild steel, brass, bronze, aluminium and cast iron.
--ISO Code: TNMG160404-DPMX DH1025
---Workpiece Material (ISO): P10-P30, M10-M30
---Chip Breaker: DPMX
Recommended chipbreaker for semi-finishing P-kind materials Double-side chipbreaker with M-class tolerance has higher toughness on cutting edge than DLPM chipbreaker. It’s suitable for semi-finishing under unfavorable conditions. Also good for machining cast iron with low cutting force.
---Coating:MT-TiCN + Al2O3 + TiN coating on carbide
---Grade: DH1025
Coated carbide grade with special strength and toughness, in an optimal combination with MT-Ti(CN), thick layer AI2O3, and TiN coating. Suitable grade for wide application. It is recommended for the finishing, semi-finishing and light roughing of steel, cast steel and stainless steel.
---Package: Product sold in packs of 10 units.

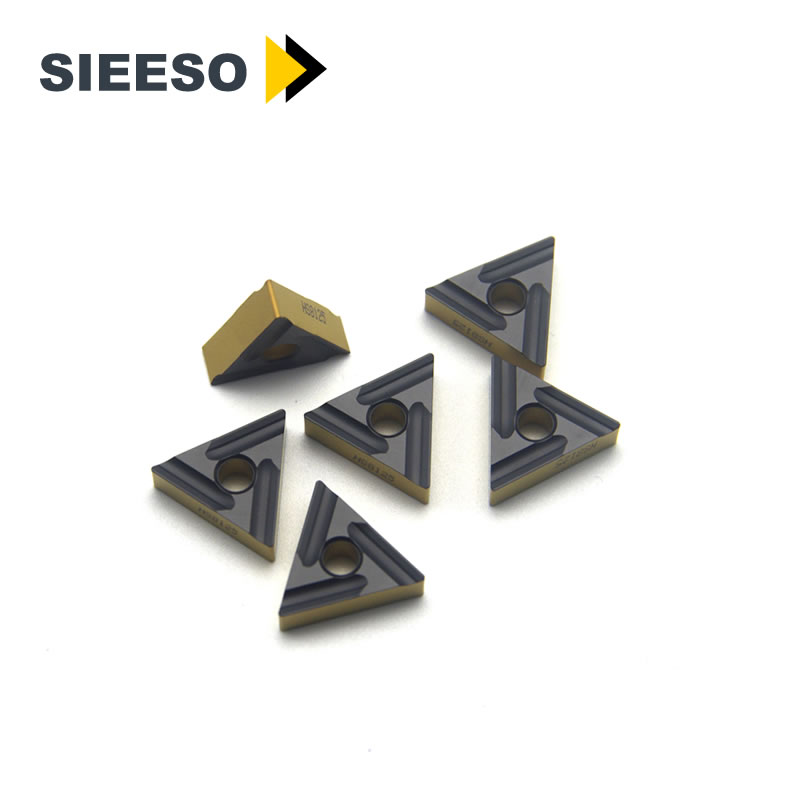

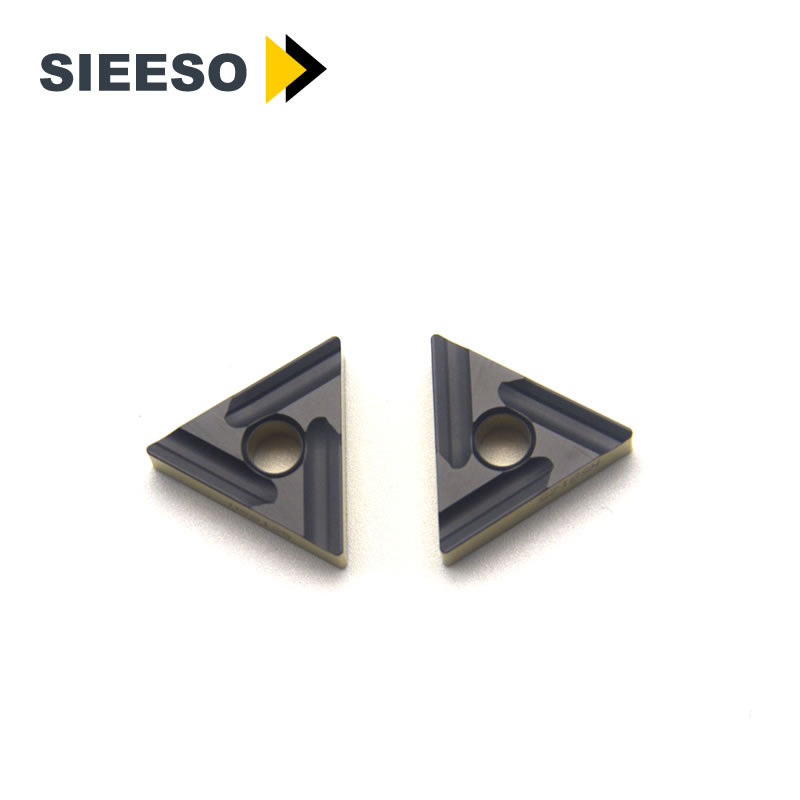

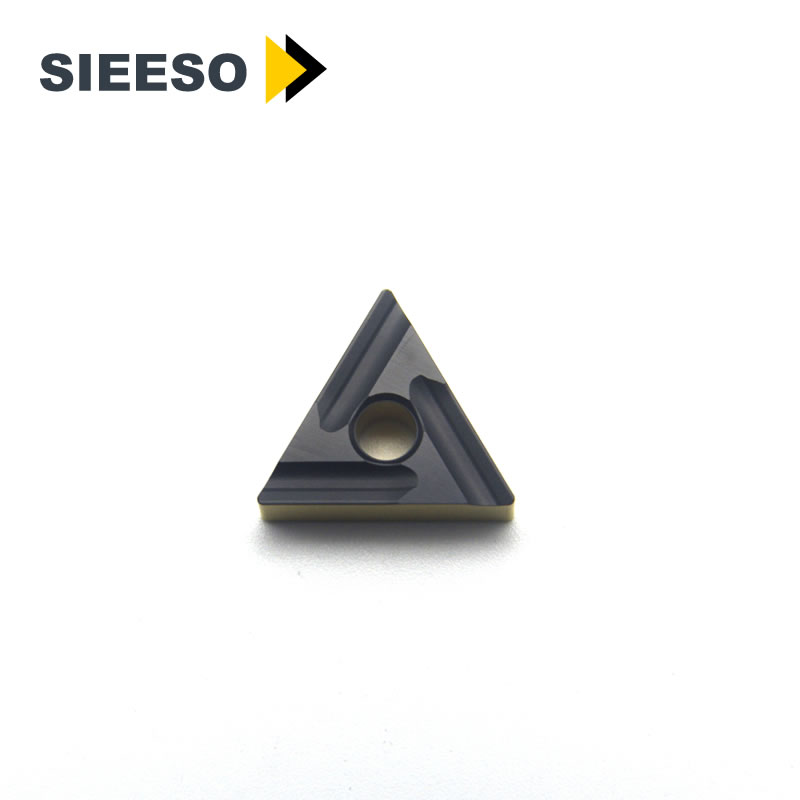

---Products picture:
