Chip Breaker Introduce

Chipbreaker Introduction

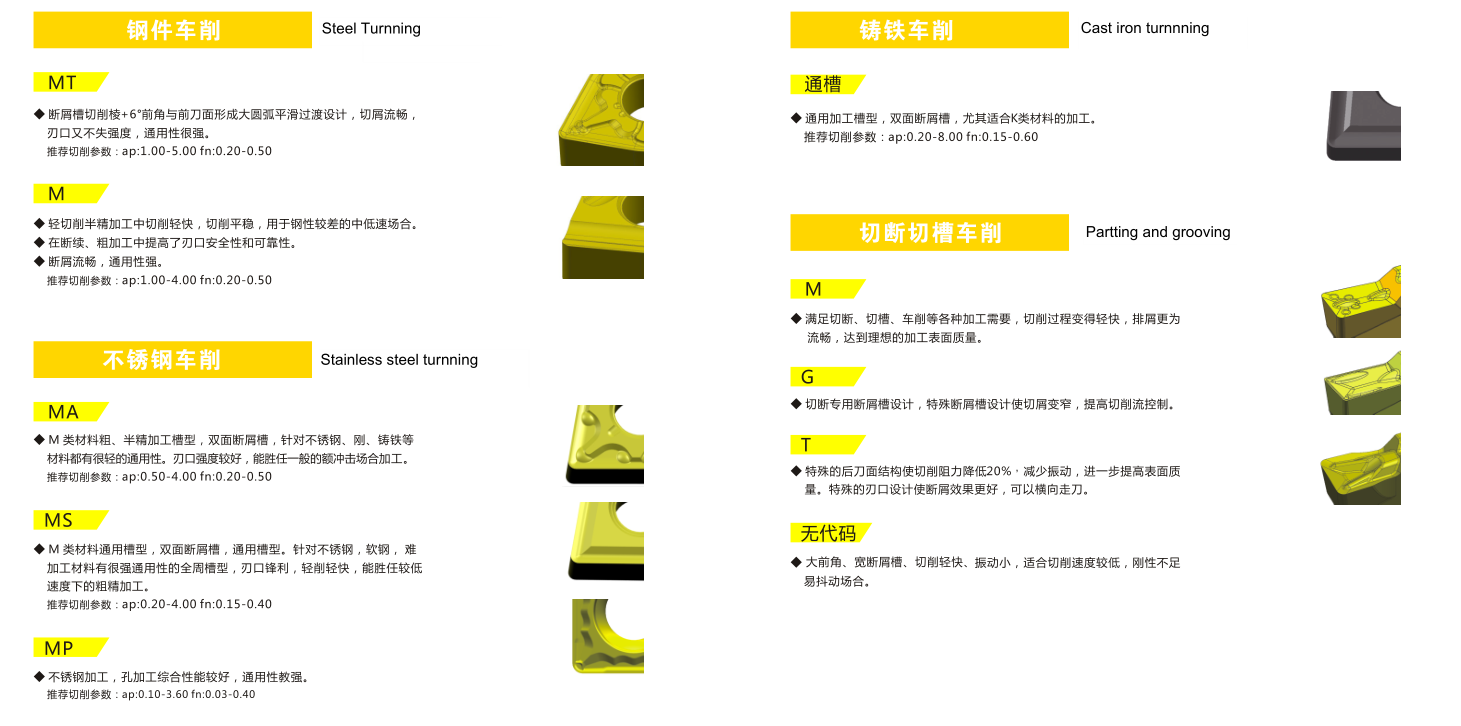

-----M(L-M/R-M)

In the light-chip semi-finishing machining, the chip is faster and the chip is stable. It is used in low- and medium-speed occasions with poor rigidity; in the intermittent and rough machining, the safety and reliability of the cutting edge are improved; the chip breaking is smooth and the versatility is strong.

-----TM/MT

The cutting edge of the chip breaker increases the rake angle by 6 degrees to form a large arc and smooth transition design with the rake face, the chip is smooth, the cutting edge does not lose strength, and the versatility is very strong.

-----MA

M-type materials are rough, semi-finished geometry, with double-sided chipbreaker,suitable for stainless steel, steel, cast iron, etc.; the materials have very light versatility. Good cutting edge strength, capable of processing in general impact situations

-----MS

M-type material general geometry, double-sided chipbreaker, general geometry; for stainless steel, mild steel, and difficult-to-machine materials, there is a very versatile full-circle geometry; sharp cutting edge, light chipping, and capable of lower speeds Rough finishing

-----MP

Stainless steel processing, better comprehensive performance of hole processing, strong versatility

-----General Geometry

General processing geometry, double-sided chipbreaker, especially suitable for processing K-type materials

-----M

Satisfy various processing needs such as cutting, grooving, turning, etc. The cutting process becomes brisk, chip removal is smoother, and the ideal surface quality is achieved.

-----G

the special Cut-off chip breaker design, the special chip breaker design narrows the chip and improves the cutting flow control

-----T

The special flank structure reduces the cutting resistance by 20%, reduces vibration, and further improves the surface quality; the special edge design makes the chip breaking effect better, and the tool can be moved horizontally.
