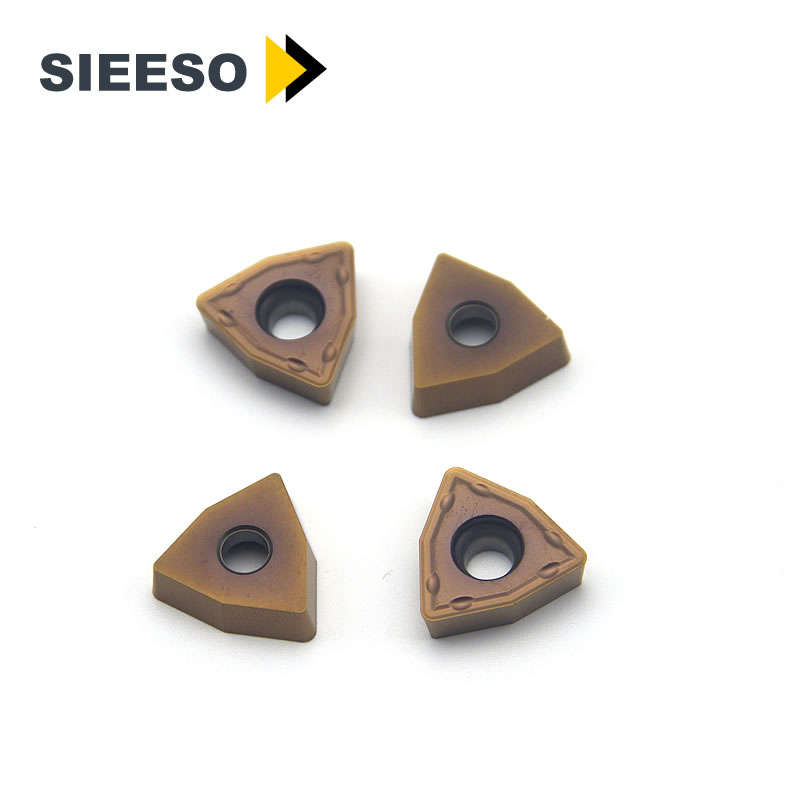

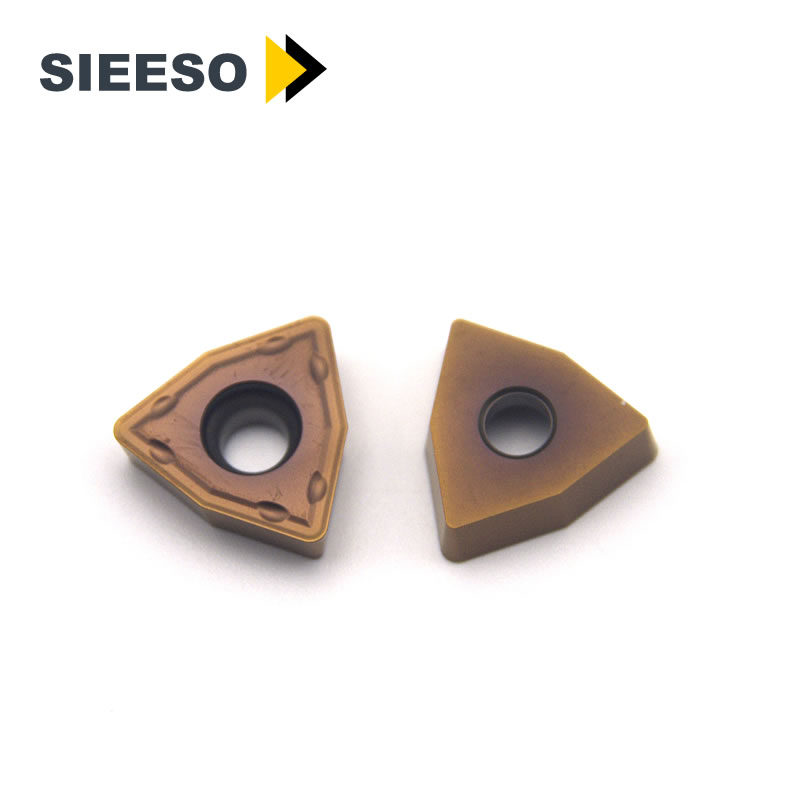

Carbide U Drill Inserts CNC Indexable Milling Cutter

Material:

Tungsten   Carbide

Grade:

Steel/Stainless/Cast   Iron

Chip   breaker:

Process   For Semi Finish , Finish And Rough

Color:

Black/Yellow

Size:

SPGT   All Series Have Mould And In Stock

Coating:

CVD/PVD

Place   of Origin:

Zhuzhou, China

Certification:

ISO9001:2015/   CQC

Description:

l   For   machining of steel, stainless steel, cast iron and heat-resistant alloys.

l   Drilling   bodies with PVD coated surfaces.

l   Big   chip pocket for better chip removal.

l   Optional   adapter for inner cooling in conventional    machines.

l   Diameter   range 13.0–50.0 mm

Application:

SPGT   types U drill tools

U-drilling   insert/ indexable drill inserts series

It's   suitable for the processing of materials of carbon steel, alloy steel and   austenitic stainless steel with high cutting efficiency under stable working   conditions.

Workpiece:

Finishing   and semi-finishing of stainless steel, steel , hard steel , cast iron , ect.

L

Θ I.C

S

Θ d

     r

SPGT050204-DPMX/DMM

5

5

2.38

2.2

0.4

SPGT060204-DPMX/DMM

6

6

2.38

2.6

0.4

SPGT07T308-DPMX/DMM

7.94

7.94

3.97

2.8

0.4

SPGT090408-DPMX/DMM

9.8

9.8

4.76

4.2

0.8

SPGT110408-DPMX/DMM

11.5

11.5

4.76

4.4

0.8

SPGT140512-DPMX/DMM

14.3

14.3

5.2

5.75

1.2

SPGT 060204 DMM/DPMX

                       Suitable for diameter 16.5- 22MM   fast drill.

SPGT 07T308 DMM/DPMX

               Suitable for diameter 22.5- 29MM   fast drill.

SPGT 090408 DMM/DPMX

   Suitable for diameter 29.5- 36MM   fast drill.

SPGT 110408 DMM/DPMX

Suitable for diameter 36.5- 43MM   fast drill.

SPGT 140512 DMM/DPMX

Suitable for diameter 44- 50MM fast   drill.

CVD COATING

DH7442

CVD coated   P20–P40/K20–K40 carbide substrate for operation with higher cutting speed and   feed rate in steel and cast iron.

DH3050

CVD coated K20–K35 carbide substrate.   Optimized for medium to roughing operation of cast iron and Steel. Good wear   resistance and toughness at higher cutting speed.

PVD COATING

DW5025

PVD coated   M10–M25/P10–P30 carbide substrate for finishing to medium application of   stainless steel and steel (milling). Good wear resistance in a wide   application field.

DW2025

PVD multilayer coated   P10–P30/M20–M40/S15–S25 carbide substrate for finishing to medium application   of stainless steel, super alloy and steel (milling). Good wear resistance and   thermal stability in a wide application field.

DW4050

PVD coated   M25–M40/P25–P35 carbide substrate for steel and stainless steel. Especially   for inner insert at drilling operation.

Uncoated carbide

DD201

Uncoated N10–N30/K10–K30 carbide substrate   for medium application in aluminum and other material.

DPMX

For machining of steel,   stainless steel and cast iron

DMM

For machining of steel, stainless steel   and heat-resistant alloys.

PG

For machining of steel and   cast iron

D

For machining of steel, stainless steel   and cast iron.

53

For machining of steel,   stainless steel, cast iron and non-ferrous metals

Packaging   Details:

Inner plastic box ; outside   wooden box or as customer's special requirements.

Payment   Terms:

T/T,WesternUnion,Paypal,   MoneyGram,Alipay,L/C, D/A, D/P

Delivery Time:

In stock 3 days,out of stock 15 working   days

Supply   Ability:

500000pcs per month
