ISO general turning inserts

  • Tungsten Carbide Turning Inserts CNMG120408-GH Cast Iron Cutting
  • Tungsten Carbide Turning Inserts CNMG120408-GH Cast Iron Cutting
  • Tungsten Carbide Turning Inserts CNMG120408-GH Cast Iron Cutting
  • Tungsten Carbide Turning Inserts CNMG120408-GH Cast Iron Cutting
Tungsten Carbide Turning Inserts CNMG120408-GH Cast Iron CuttingTungsten Carbide Turning Inserts CNMG120408-GH Cast Iron CuttingTungsten Carbide Turning Inserts CNMG120408-GH Cast Iron CuttingTungsten Carbide Turning Inserts CNMG120408-GH Cast Iron Cutting

Tungsten Carbide Turning Inserts CNMG120408-GH Cast Iron Cutting

  • 1.high wearing resistance
  • 2.excellent roughness
  • 3.MOQ:10PCS
  • 4.long life span
  • ລາຍ​ລະ​ອຽດ​ສັ້ນ​:: Tungsten Carbide Turning Inserts CNMG120408-GH Cast Iron Cutting .M class, 80deg rhombic insert,CNMG CNMG543- CNMG160612-, turning insert , lctcarbide inserts,steels medium machining
  •   ສົ່ງອີເມວ

Zhuzhou Xinshuo New Advanced Materials Co.LTD, ຍີ່ຫໍ້ເປັນໂຮງງານ SIEESO carbide, ເປັນຜູ້ຜະລິດມືອາຊີບຂອງເຄື່ອງມືຕັດແລະວັດສະດຸ Carbide. ນັບຕັ້ງແຕ່ Sieeso ໄດ້ເລີ່ມຕົ້ນ, ມັນມີຄວາມຊ່ຽວຊານໃນການອອກແບບແລະການຜະລິດເຄື່ອງມືຕັດຄຸນນະພາບສູງ & ວັດສະດຸ Carbide. ມີ​ຫຼາຍ​ກວ່າ​ພັນ​ປະ​ເພດ​ທີ່​ແຕກ​ຕ່າງ​ກັນ​ຂອງ​ລາຍ​ການ​ແລະ​ຫຼັກ​ຊັບ​ຂະ​ຫນາດ​ໃຫຍ່​. Sieeso ມີສາຍຜະລິດຕະພັນທີ່ສໍາຄັນສໍາລັບເຄື່ອງມືແລະວັດສະດຸທີ່ມີອຸປະກອນແລະເຄື່ອງມືທີ່ກ້າວຫນ້າ.


50% ຂອງຜະລິດຕະພັນຂອງພວກເຮົາສະຫນອງເປັນໂຄງການ OEM ສໍາລັບບໍລິສັດຕັດລະດັບໂລກແລະ 50% ທີ່ຈະເຮັດເປັນຍີ່ຫໍ້ຂອງພວກເຮົາເອງ. ຜະລິດຕະພັນຂອງພວກເຮົາໄດ້ຖືກຂາຍໄປທົ່ວໂລກ, ເຊັ່ນ: ລັດເຊຍ, ຕວກກີ, ເອີຣົບ, ອາເມລິກາ, ເມັກຊິໂກ, ຫວຽດນາມ, ໄທ, ອິນເດຍ, ມາເລເຊຍ, ແລະອື່ນໆ.




Tungsten Carbide Turning Inserts CNMG120408-GH Cast Iron Cutting



ISO Type: CNMG120408


Carbide Turning Inserts CNMG120408-GH High Efficiency For Cast Iron




Dimension (inch): L=0.634, I.C.=0.625, S=0.250, d=0.250, r=0.047


Grade: 8125/7225/6120


Chip Breaker: MA/MS/TM/FM etc


Chip Breaker Application:

Recommended chipbreaker for semi-finishing P-kind materials
Double-side chipbreaker with M-class tolerance has higher toughness on cutting edge than DPM chipbreaker. It’s suitable for semi-finishing under unfavorable conditions. Also good for machining cast iron with low cutting force.


Grade Description: MT-TiCN + Al2O3 + TiN coating on carbide


Grade Application:

Substrate with special matrix, in combination with Ti(CN), thick layer AI2O3, and TiN coating. With the resistance to rake face diffusion and plastic deformation, it is good for finishing and semi-finishing (turning as well as boring) of stainless steel.


Workpiece Material (ISO): Cast Iron /stainless steel/steel


Carbide Turning Inserts CNMG120408-GH High Efficiency For Cast Iron

Application: This insert is an excellent choice for general-purpose medium machining of steels.


Package: Product sold in packs of 10 units.

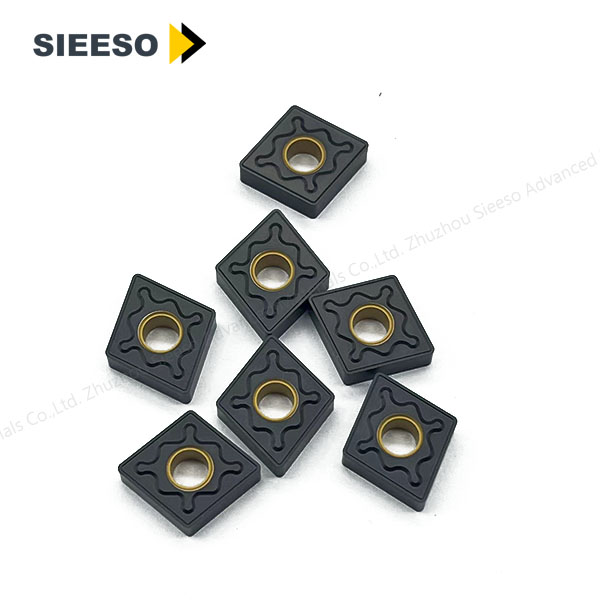

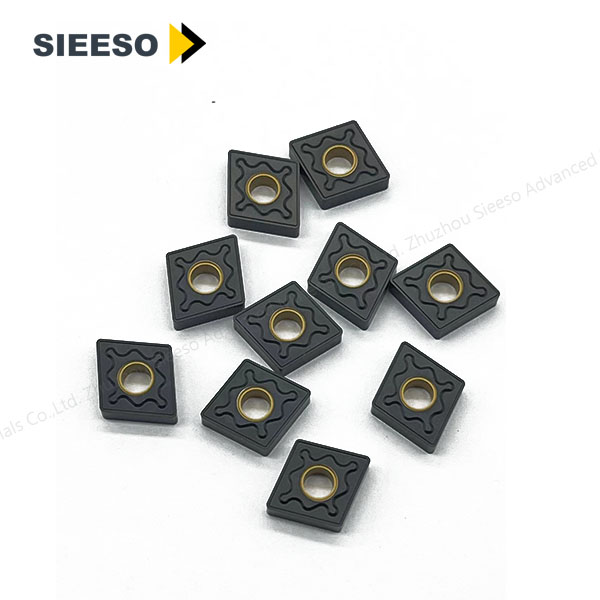

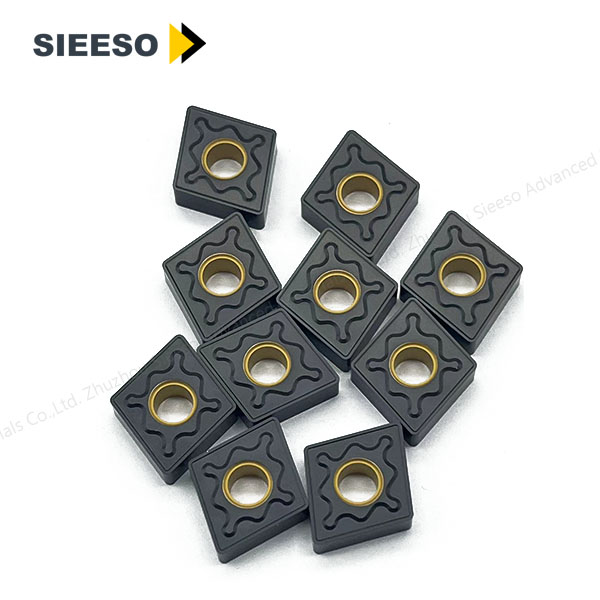

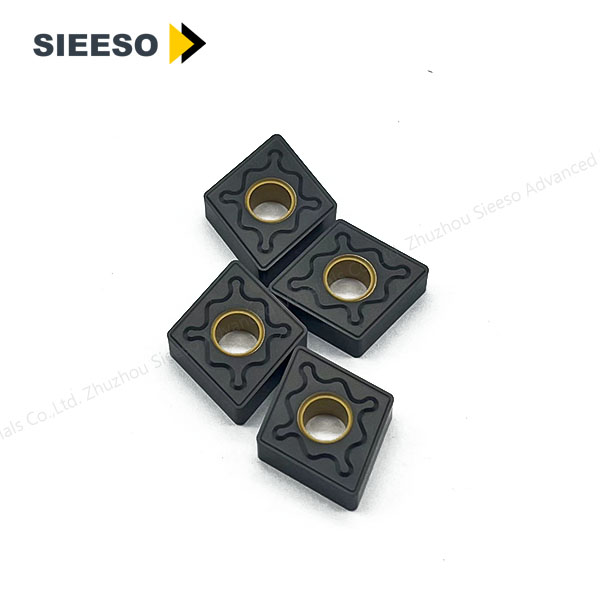

Products Pictures:












ຮູບພາບໂຮງງານ:


SIEESO FACTORY
SIEESO FACTORYSIEESO FACTORY
